- Collet Chuck is also called Collet Adapter For Collets.
- Made from 20MnCr5 & Case Hardened to 55-58 HRc approx.
- Precision Ground to an Accuracy of 0.015 mm TIR.
- For best result : Always insist on RR make Collets.
- Use C Hook Spanner to avoid breakages.
- Suitable for both Tail & Schaublin type Collets.
- Standard Collet Adaptor supplied are of Draw Bolt Type.

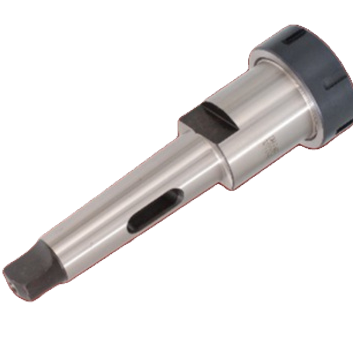

MT E Type Collet Chucks and Holders are of 2 Types:
- Drawbolt Type
- Tang Type (With & without Cotter Slot)
Dimension Chart for Collet Chucks MT Taper:
|Shank Taper||Suitable For Collet||L mm||L1 mm||ØD mm||ØD1 mm||M||A/F mm|
|MT - 2||E- 32||64.0||80||50||17.780||M10||24|
|MT - 2||E- 40||64.0||87||63||17.780||M10||24|
|MT - 3||E- 32||81.0||80||50||23.825||M12||24|
|MT - 3||E- 40||81.0||87||63||23.825||M12||24|
|MT - 4||E- 32||102.5||69||50||31.267||M16||32|
|MT - 4||E- 40||102.5||91||63||31.267||M16||32|
|MT - 4||E- 45||102.5||96||68||31.267||M16||32|
|MT - 5||E- 40||129.5||97||63||44.399||M20||45|
|MT - 5||E- 45||129.5||101||68||44.399||M20||45|
Currently, you are viewing MT E type Collet Chucks
E Type Collet Chuck is available in 3 types of Taper:
Types of Collet Chucks Manufactured:
For best experience, we insist you to use RR Collets. View Collet Collection, Click Here.
Buy RR MT E40 Collet Chuck online at wholesale rates. If you have been looking for RR MT E40 Collet Chuck dealers, your search ends here as you can get the best distributors in top cities such as Delhi NCR, Mumbai, Chennai, Bengaluru, Kolkata, Chennai, Pune, Coimbatore, Hyderabad, and many more. You can purchase RR MT E40 Collet Chuck of the finest quality and rest assured to get the best in terms of both durability and performance. If you are bothered about the prices, you can be totally sure to get the best rates as RRToolStore brings you genuine RR MT E40 Collet Chuck rates and quality assured products with exclusive discounts you won’t find anywhere else. Buy RR MT E40 Collet Chuck today and avail the best offers on your purchase.
|Type of Product:||RR MT E40 Collet Chuck|
Searching for other sizes of RR MT E40 Collet Chuck? Send us an Inquiry.
