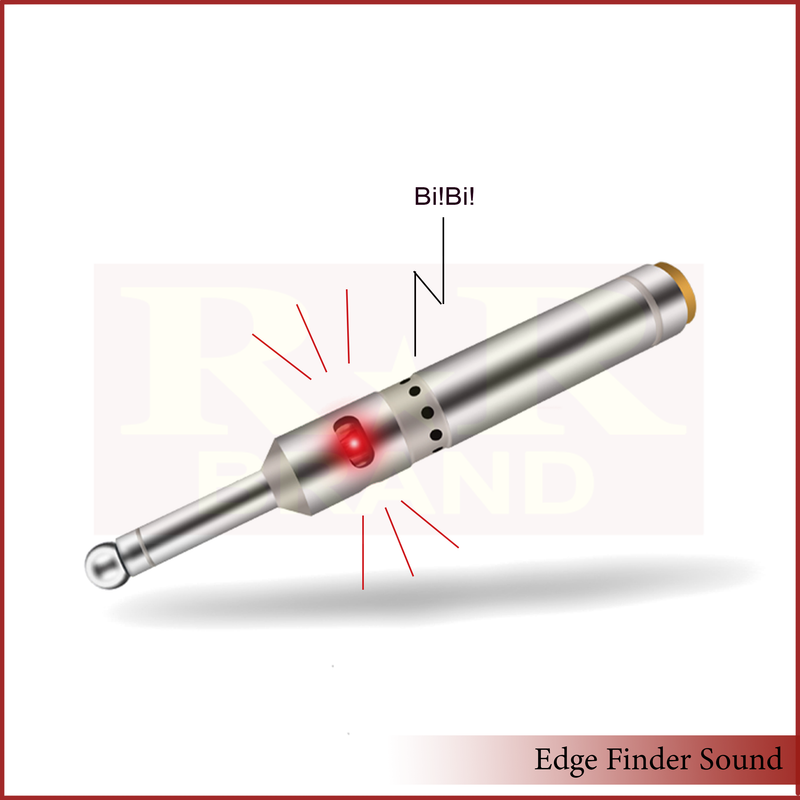

Edge Finder Sound

• The red lamp can concentrate light and resist water.
• It will beep at the same time when the red lamp is on.
• When the probe is in a deep hole you can't see the red light, but you can hear the sound.
• The steel ball probe can be used for deep holes.
• Easily turn on and change batteries.

Dimension Chart for Edge Finder Sound:

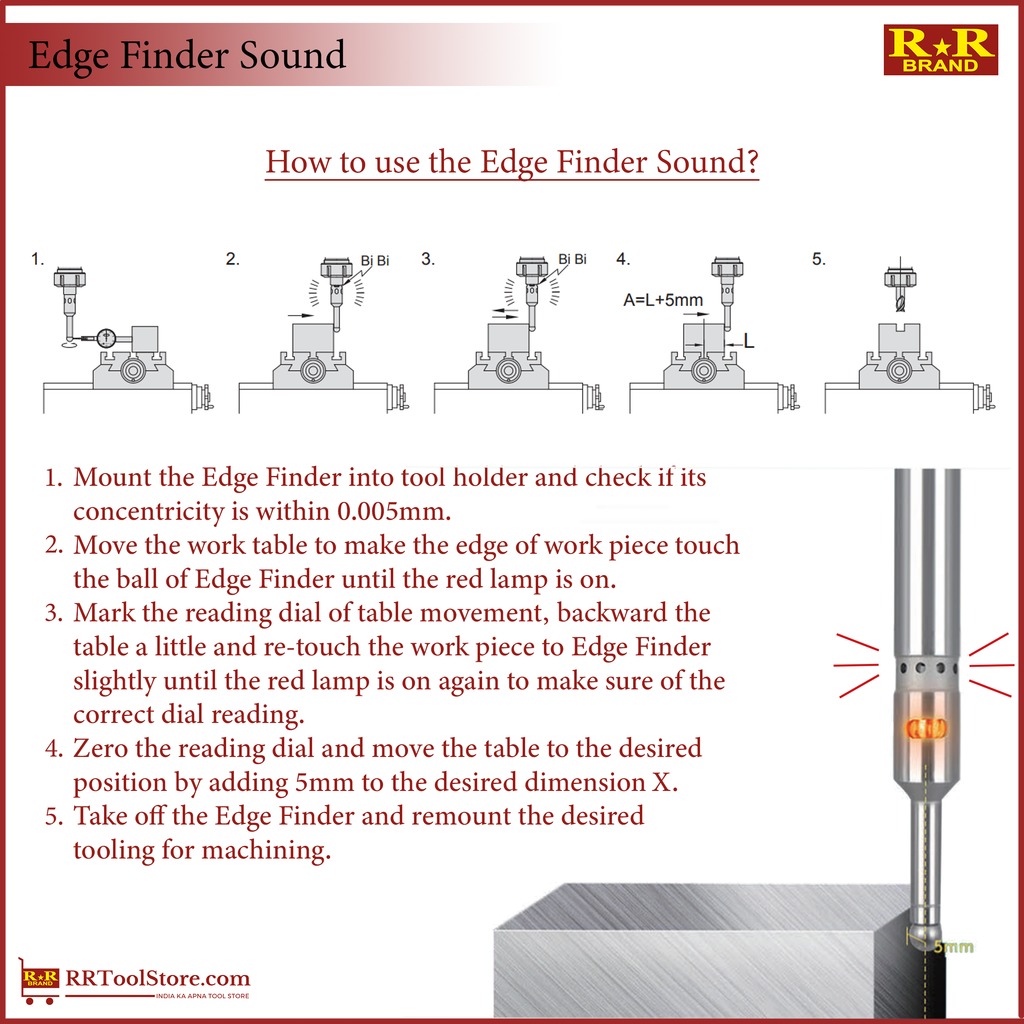

How to use the Edge Finder Sound?

1. Mount the Edge Finder into the tool holder and check if its concentricity is within 0.005mm.
2. Move the work table to make the edge of the workpiece touch the ball of Edge Finder until the red lamp is on.
3. Mark the reading dial of table movement, backward the table a little, and re-touch the workpiece to Edge Finder slightly until the red lamp is on again to make sure of the correct dial reading.
4. Zero the reading dial and move the table to the desired position by adding 5mm to the desired dimension X.
5. Take off the Edge Finder and remount the desired tooling for machining.
