DESCRIPTION

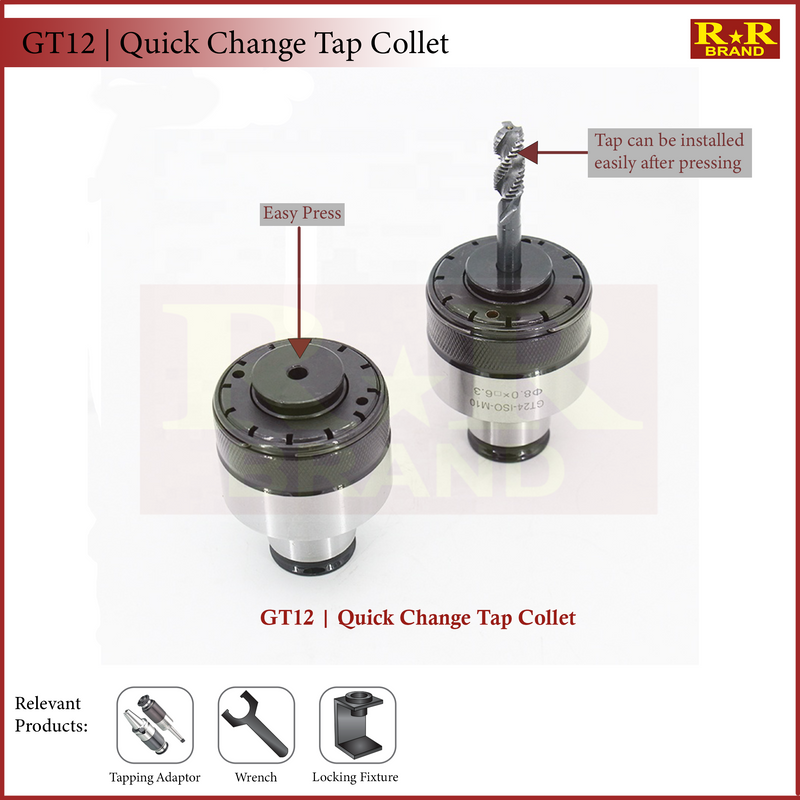

- The adaptors are designed for optimum efficiency. Removal and replacement in the chuck is rapid and the location and locking of the tap in the adaptor is simple and effective.
- This system is capable to perform economically and with the highest accuracy, an unlimited number of operations at a single clamping of the component.
Direction for use:
- Rotate clockwise to increase torque
- Turn counterclockwise to reduce torque
Vertical as well as Horizontal Applications:
- Drilling
- Counterboring
- Chamfering
- Reaming
- Tapping
Suitable for:
- Drilling Machines
- Radial Drilling Machines
- Lathe Machines
- Tool Room Miling Machines
- M1TR(R8) Vertical Milling Machines

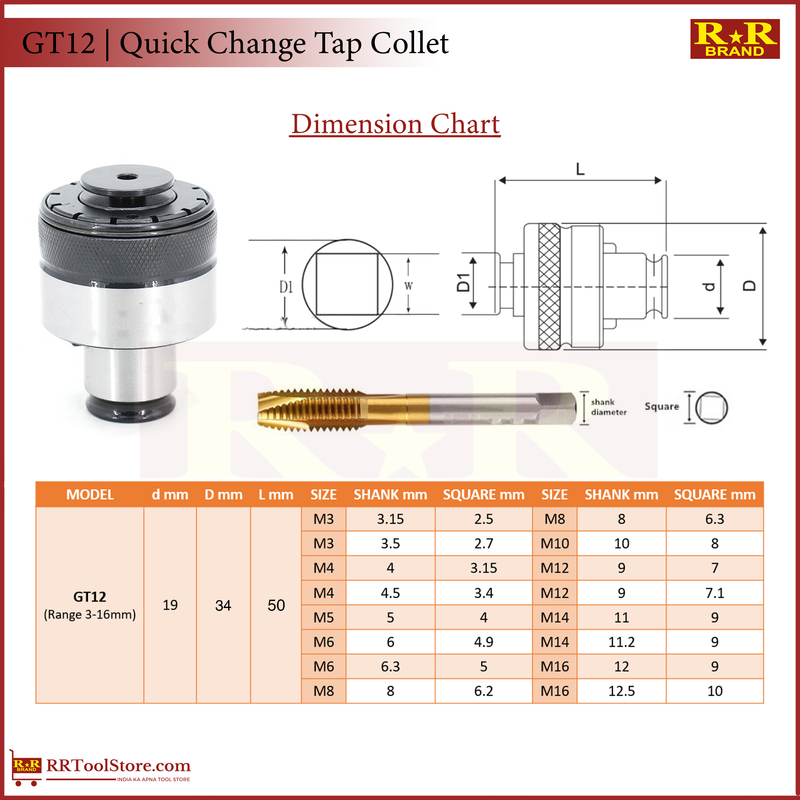

Dimension Chart for GT12 Quick Change Tap Collet:
